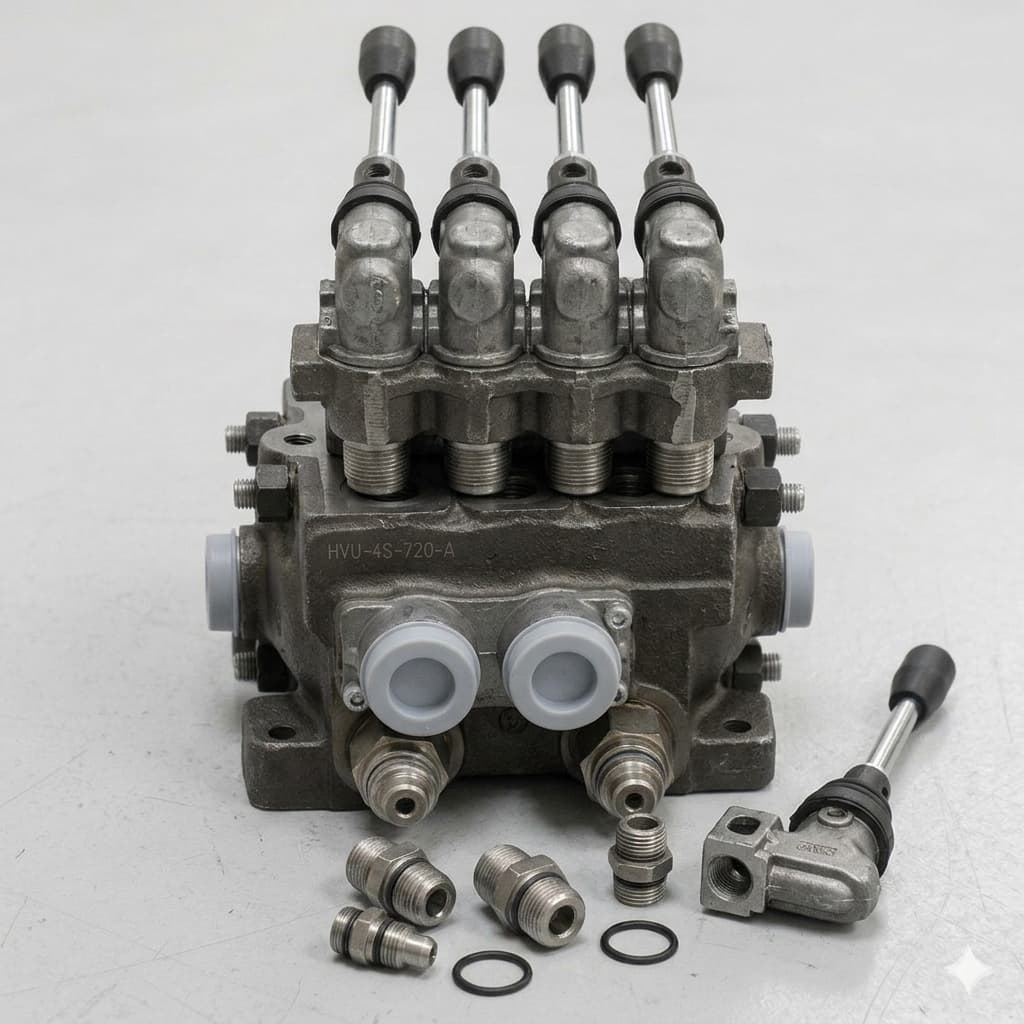

Walvoli hydro control Valve

Product description

A Walvoil Hydro Control Valve (directional control valve) regulates fluid direction, flow rate, and pressure in mobile, agricultural, and industrial machinery .Full Product Specifications & Details Material: High-tensile cast iron body (housing) with precision-ground, hard chrome-plated steel spools and synthetic rubber seals (NBR/Buna-N or optional Viton). Size & Dimensions: Compact builds available in mono block (single cast housing with 1 to 7 spools) or sectional (stackable up to 12 sections). Port connections typically utilize BSP or SAE threaded ports (ranging from $3/8^{\prime\prime}$ to $3/4^{\prime\prime}$ depending on flow models like SDM080, SD5, or SD11). Performance Parameters : Max Operating Pressure: Up to 250 to 315 bar (3,600 to 4,600 PSI).Flow Rate Capacity: Standard ranges span from 15 L/min up to 90+ L/min (heavy-duty models scale higher).Compatible Fluids: Mineral-based hydraulic oils (HL, HM, HLP). Care & Maintenance: Filtration: Maintain oil contamination levels at or below ISO 4406 19/16/13 (or use recommended 25-micron return line filtration). Fluid Temperature: Keep operating fluid with standard NBR seals. Inspection: Periodically check tie-rod torque specs, lever boot integrity, and inspect for external seal leaks. What is in the Box: Walvoil Control Valve Body (pre-assembled with main pressure relief valve) Manual Control Lever(s) with dust boots/spring-return kits Tie-rod assembly kit (for multi-section builds) User/Technical Instruction Sheet

Specifications
