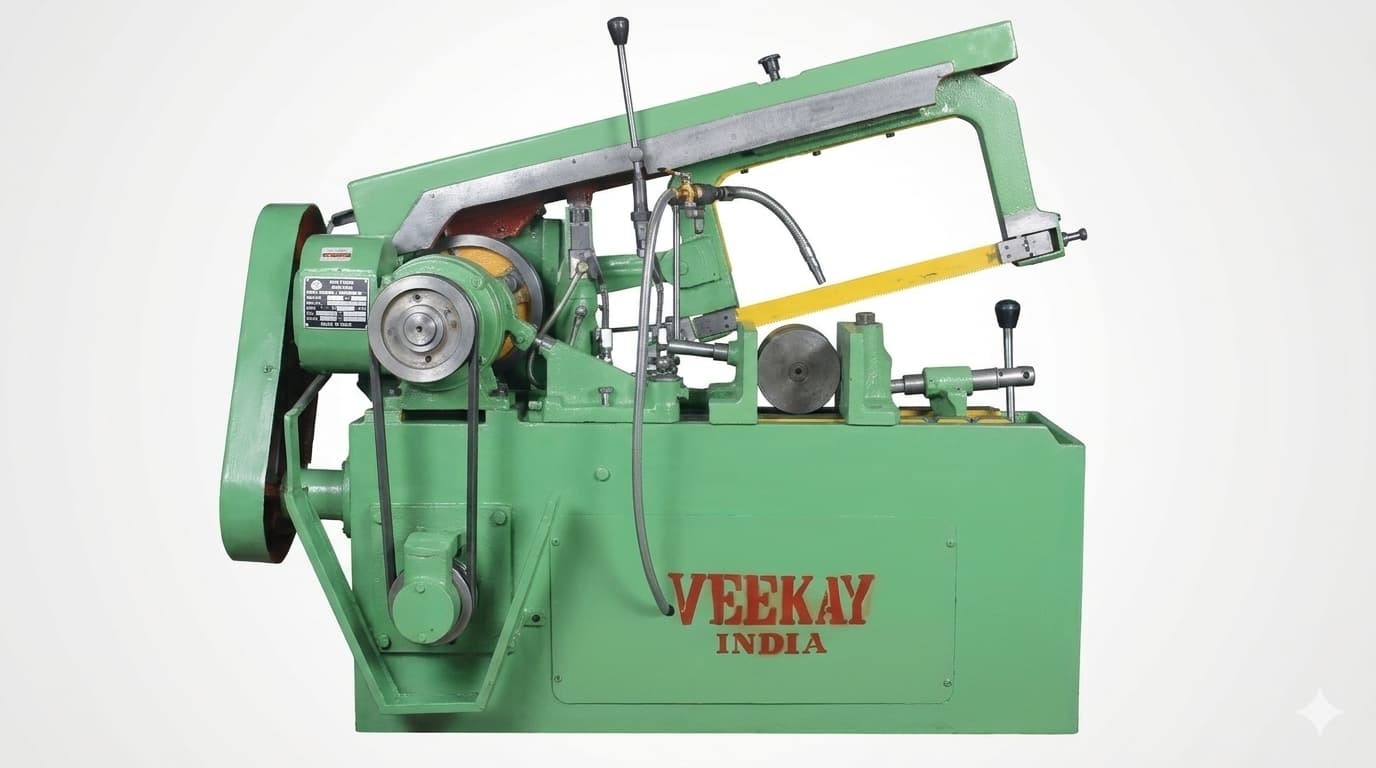

Hydraulic Hacksaw Machine 550 kg 10 inch

Product description

• Build & Construction: • Features a high-grade, rigid single-piece cast iron bed and body designed to absorb vibration and ensure high cutting accuracy. • The heavy 550 kg weight class provides stability during continuous industrial production. • Cutting Mechanism & Saw Frame: • Uses a rigid saw frame running in prismatic guides to guarantee straight, square, and parallel cuts. • Cutting action occurs on the backward (pull) stroke; the blade is automatically lifted via a hydraulic mechanism during the forward stroke to eliminate unnecessary friction and prolong blade life. • Hydraulic Feed & Controls: • Controlled via a hydraulic dash-pot system with dual levers: one lever regulates the downward feed rate, while the other raises or lowers the bow slide. • Includes an automatic trip mechanism that shuts off the electric motor as soon as the cut is completed and the blade clears the material. • Drive & Speeds: • Driven by V-pulleys with a tension adjustment system and precision taper/ball bearings to minimize mechanical friction. • Typically offers multi-speed or two-speed selection (high speed for softer metals like brass, copper, and mild steel; low speed for cast iron and harder alloys). • Work holding & Coolant System: • Equipped with a heavy-duty rigid vice (often with angular/tilting adjustment capability) to clamp round and square stock. • Features an enclosed base coolant tank complete with a constant-speed electric coolant pump and tray to flush swarf and manage blade heat. • Capacity & Specifications (Typical BFH-10 / 10-inch Class): • Blade Size: Around 10 to 12 inches (or ~450 × 32 mm variant specs) • Cutting Capacity (Round): Up to 250 mm (~10 inches) • Cutting Capacity (Square): Up to 200 mm • Motor Power: Generally 1.5 HP (1440 RPM) electric motor with a push-button starter • Approximate Net Weight: ~550 kg

Specifications
